OSIPI Verification¶

ROCKETSHIP's fitting routines are verified against an independent external standard with known ground truth: the Open Science Initiative for Perfusion Imaging (OSIPI), an ISMRM-led effort that publishes reference data and a common framework for comparing perfusion software across research groups.

This page sets out what that verification covers, how accuracy is judged, and the results. For the rest of the automated test suite, see Testing.

Why an external standard¶

Nonlinear model fitting is sensitive to implementation detail. A unit convention, an optimizer setting, or a subtly miscoded model equation can shift estimated parameters by enough to change a clinical conclusion, while the fit itself still converges and the curves still look reasonable.

Testing such code against its own output demonstrates nothing, and comparing it against another implementation only establishes that two pieces of software agree. Neither shows that the recovered numbers are correct. Establishing that requires data whose true parameters are known independently, and a threshold set by someone other than the authors of the software. That is what the OSIPI framework provides.

Digital reference objects¶

OSIPI publishes digital reference objects — synthetic concentration–time curves generated from known kinetic parameters. Because the true answer is known exactly, fitting a DRO measures absolute accuracy rather than agreement with another implementation.

The test suite fits these DROs with ROCKETSHIP's own routines and checks the recovered parameters against OSIPI's published acceptance criteria. Coverage extends across the pipeline:

The DRO files committed to the repository are byte-identical (verified by MD5) to the OSIPI source, so the verification is reproducible rather than resting on a transcription.

How accuracy is judged¶

Two independent references are used, and the distinction between them matters.

OSIPI acceptance tolerances — the pass/fail gate. These are OSIPI's own per-parameter tolerances, transcribed verbatim from its test suite, and are what every participating implementation is checked against. Per the OSIPI publication they are deliberately wide validity checks, intended to catch gross and unit errors and explicitly "not intended to indicate an acceptable level of accuracy." Passing them means an implementation is free of gross defects, not that it is the most accurate available.

Peer implementation spread — context, not a gate. The framework publishes the fitted results of every contributing research group. Pooling those gives the spread of errors across established perfusion software, which places ROCKETSHIP's error in the context of the field rather than merely against a threshold.

The peer spread is reported but deliberately not used as a pass/fail bar, because for the 2CXM and 2CUM models the comparison is partly self-referential: ROCKETSHIP's implementations of those models follow the same LEK/Edinburgh formulation that is also present in the peer pool, so its error naturally tracks the peer figures closely for those two models.

Results¶

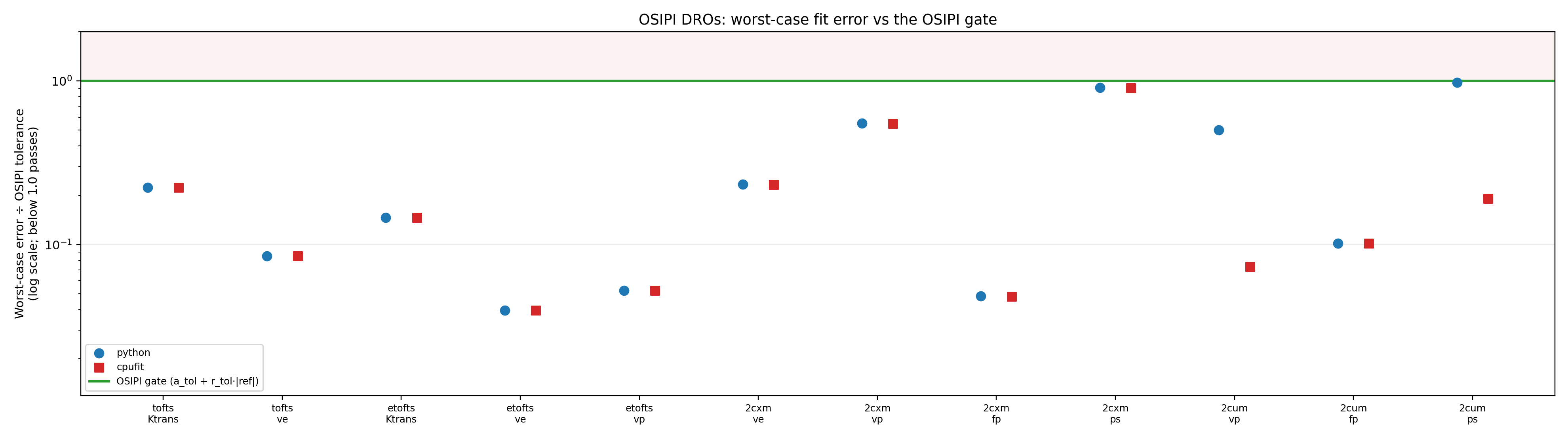

Worst-case fit error for each model and parameter, expressed as a fraction of the OSIPI tolerance that parameter is judged against. The gate is the green line at 1.0; anything below it passes, and the shaded band above it is the failing region. Plotting the ratio rather than the raw error puts parameters with different units on a single axis.

Reading the table¶

Each backend entry is the largest absolute deviation from ground truth across every DRO case for that parameter, in that parameter's own units, followed by that deviation as a percentage of the OSIPI tolerance. Anything under 100% is inside the tolerance and passes.

The tolerance itself is not a single number per row: OSIPI defines it per case as \(a_{tol} + r_{tol}\,|{\text{reference}}|\), so it varies with the true value being recovered. The percentage is therefore quoted against the tolerance applying to the worst case, which is what the gate actually tests. Peer maximum is an absolute error like the backend columns, but carries no percentage because it is reported for context and is not gated.

Units follow the OSIPI digital reference object convention: \(v_e\) and \(v_p\) are dimensionless volume fractions, \(K^{trans}\) and \(PS\) are per minute, and \(F_p\) is mL/100 mL/min.

Every backend passes the OSIPI gate on every model and parameter. Worst-case error stays inside the tolerance throughout. Measured against the field, the standard CPU path is at or below the maximum of the published peer implementations on twelve of the fourteen parameters, the exceptions being the two 2CUM parameters; the CPUfit path is at or below it on all fourteen. Variable-flip-angle \(T_1\) mapping and the signal-to-concentration conversion pass on the same basis.

Running the verification¶

.venv/bin/python -m pytest tests/python -m osipi -v

This runs the full sweep, including the complete 2CXM and 2CUM case sets. For a summary of error against the OSIPI gate with the peer spread alongside:

.venv/bin/python tests/python/run_osipi_reliability.py --suite all

The accuracy report and figures above are regenerated with:

.venv/bin/python tests/data/osipi/reference/generate_osipi_summary.py

Full details of the reference data, its provenance, the tolerance files and the individual tests are in tests/data/osipi/README.md.

References¶

van Houdt, P.J., et al. Reproducibility of DCE-MRI analysis: an ISMRM Open Science Initiative for Perfusion Imaging (OSIPI) study. Magnetic Resonance in Medicine (2023). The OSIPI comparison framework.

Manning, C., et al. Verification of a generalised framework for tracer kinetic analysis. Magnetic Resonance in Medicine (2021). The pharmacokinetic digital reference objects.

Reference data and per-implementation results are drawn from the Apache-2.0 licensed OSIPI DCE-DSC-MRI_TestResults repository.
